Planetary Gearboxes

Key features • ABB、SIEMENS and other high-end motors can be installed together with our gearboxes to be sold • Factory outlet，provide video factory inspection • Applicable speed ratio range: from 5:1to 100:1 • Certification:RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Delivery time: 50 days(for ready goods,we can deliver them within 2days) • Approximate gross weight: 1.09Kg/pc Contact detail: • If you need special customization or have requirements for delivery time, please contact sales manager: daiyi@chinachenyue.com WhatsApp: +86 173 5260 0137 M: +86 173 5260 0137 Service: +86 400 019 2928

Key features • ABB、SIEMENS and other high-end motors can be installed together with our gearboxes to be sold • Factory outlet，provide video factory inspection • Applicable speed ratio range: from 5:1to100:1 • Output shaft diameter:∅42 • Large flat key size:56*12 • Small flat key size : 40*12 • Output shaft length : 248mm • Certification:RoHS/CE/IAF/CNAS /ISO9001/ISO45001/ISO14001 • Delivery time: 50 days(for ready goods,we can deliver them within 2days) • Approximate gross weight: 3.66Kg/pc Contact detail: • If you need special customization or have requirements for delivery time, please contact sales manager: daiyi@chinachenyue.com WhatsApp: +86 173 5260 0137 M: +86 173 5260 0137 Service: +86 400 019 2928

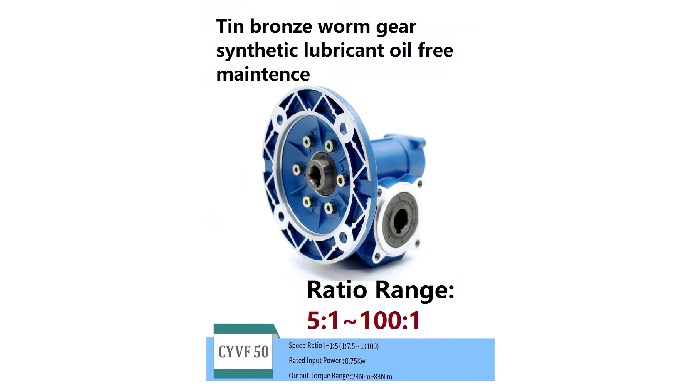

Key features • ABB、SIEMENS and other high-end motors can be installed together with our gearboxes to be sold • WORM WHEEL ADOPTS HIGH QUALITY TIN Bronze， LONG SERVICE LIFE AND MORE DURABILITY. • Factory outlet，provide video factory inspection • Speed ratio range: from 5:1 to 100:1 • Input shaft/hole: ∅11/∅14/∅19 • Output shaft/hole: ∅25 • Rated Input Speed: 1450rpm • Output Speed: 290rpm • Rated Input motor : 0.12kW～0.75kW • Output Torque Range : 22N·m～81N·m • Colors: Blue or gray or green or according to customer required • Die-cast aluminum alloy housing • Worm wheel adopts high quality Tin Bronze • Certification:RoHS/CE/IAF/CNAS/ISO9001/ISO45001/ISO14001 • Flange: round or square • Delivery time: 50 days(for ready goods,we can deliver them within 2 days) • Approximate gross weight: 4.5 Kg/pc Key benefits: • Maintenance-free,fully sealed(no need fill oil for whole life) • Good heat dissipation • Low temperature rise • Low noise, smooth operation • Long service life and more durability • Energy saving and high efficiency • Can be installed in any position and in all directions • Built-in fully synthetic lubricant, no breather plug Tip: •The whole worm gearbox is warranted for one year •The starting date of the warranty period is subject to the date of the product invoice, please present the invoice when repairing. •Beyond the warranty period or does not belong to the free warranty products, the company's maintenance center is still dedicated to serve you. Contact detail: • If you need special customization or have requirements for delivery time, please contact sales manager: daiyi@chinachenyue.com WhatsApp: +86 173 5260 0137 M: +86 173 5260 0137 Service: +86 400 019 2928
